Product Introduction

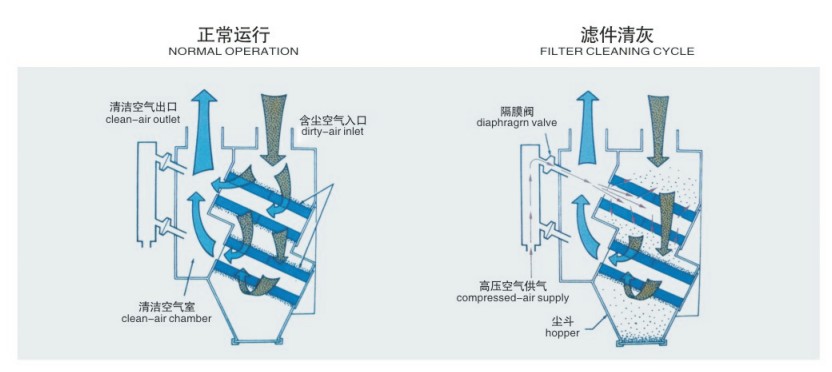

During normal operation, dinty-air by the top enitry into DFET filer collector, and through the flter cartridge. The dust was set on the surface of fiter cartridges, clean-air Through the cartridge into the clean-air chamber center and then through the outlet.
When fter cartridge dust, solid control timer will automatically choose a pair of fter cartridge to soot dleaning. At this point, the controller will control the electromagnetic valve to open up an air diaphragm valve. And the compressed-air directly into the selected fiter cylinder center, the catcher in the dust on the surface of the fter on purging a clear. Dust, with the main flow of fashion, and under the action of gravity drop into the dust hopper.

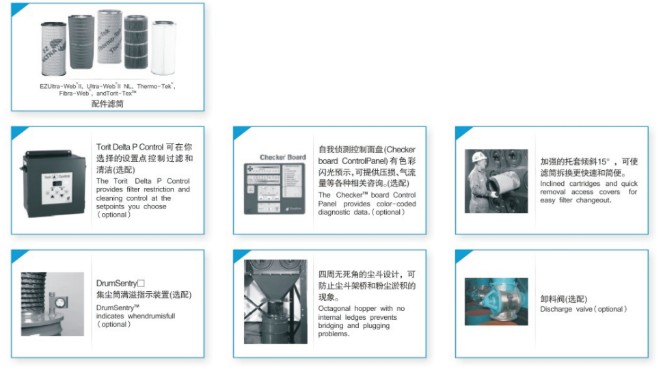

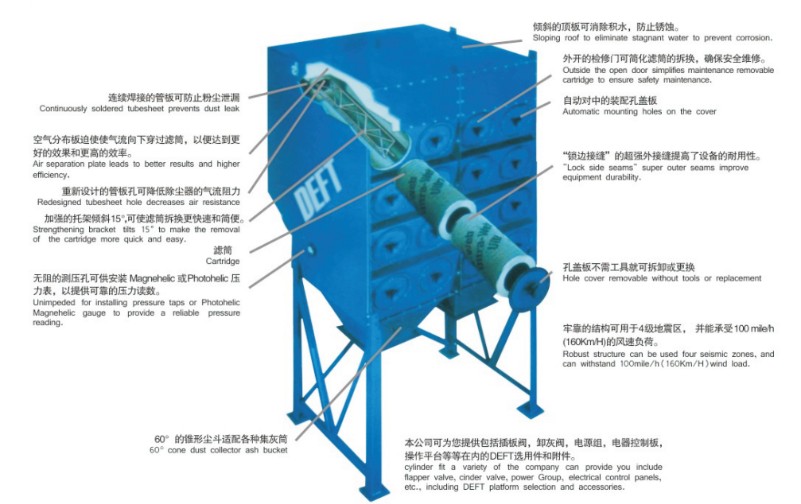

·Cartridge Dust Collector Characteristics
Specifications
| Model | Height in (mm) | Width in (mm) | Depth in (mm) | Filter Media Area of Cartridge ft(m) | Number of Filter Cartridges | Gross Weight of Packed Case lbs(kg) |
| DEFT2-8 | 125(3175) | 40(1016) | 85(2159) | 2032(187) | 8 | 1,850(841) |
| DEFT2-12 | 125(3175) | 58(1473) | 95(2413) | 3048(280) | 12 | 2,430(1,105) |
| DEFT3-12 | 143(3632) | 40(1016) | 85(2159) | 3048(280) | 12 | 2,430(1,105) |
| DEFT2-16 | 125(3175) | 80(2032) | 85(2159) | 4064(373) | 16 | 3,020(1,373) |
| DEFT4-16 | 162(4115) | 40(1016) | 85(2159) | 4064(373) | 16 | 2,560(1,164) |
| DEFT2-24 | 125(3175) | 116(2946) | 95(2413) | 6069(557) | 24 | 4,400(2,000) |
| DEFT3-24 | 143(3632) | 80(2032) | 85(2159) | 6069(557) | 24 | 3,730(1,695) |
| DEFT4-32 | 162(4115) | 80(2032) | 85(2159) | 8128(746) | 32 | 4,470(2,032) |
| DEFT2-36 | 125(3175) | 174(4420) | 95(2413) | 9144(840) | 36 | 6,000(2,727) |
| DEFT3-36 | 143(3632) | 120(3048) | 85(2159) | 9144(840) | 36 | 5,230(2,377) |
| DEFT3-48 | 143(3632) | 160(4064) | 85(2159) | 12192(1120) | 48 | 6,900(3,136) |
| DEFT4-48 | 162(4115) | 120(3048) | 85(2159) | 12192(1120) | 48 | 6,290(2,859) |
| DEFT3-60 | 143(3632) | 200(5080) | 85(2159) | 15240(1399) | 60 | 8,860(4,027) |
| DEFT4-64 | 162(4115) | 160(4064) | 85(2159) | 16256(1493) | 64 | 8,140(3,700) |
| DEFT3-72 | 143(3632) | 240(6096) | 85(2159) | 18288(1679) | 72 | 9,660(4,391) |
| DEFT4-80 | 162(4115) | 200(5080) | 85(2159) | 20320(1866) | 80 | 10,170(4,623) |
| DEFT4-96 | 162(4115) | 240(6096) | 85(2159) | 24384(2239) | 96 | 12,140(5,518) |
| DEFT4-112 | 162(4115) | 280(7112) | 85(2159) | 28448(2612) | 112 | 14,080(6,400) |
| DEFT4-128 | 162(4115) | 320(8128) | 85(2159) | 32512(2985) | 128 | 16,000(7,273) |
| The first number indicates number of filter rows, and the second number indicates number of cartridges. | ||||||
Case
