Dust Removal Equipment >> DEG Syvac

DEG Syvac

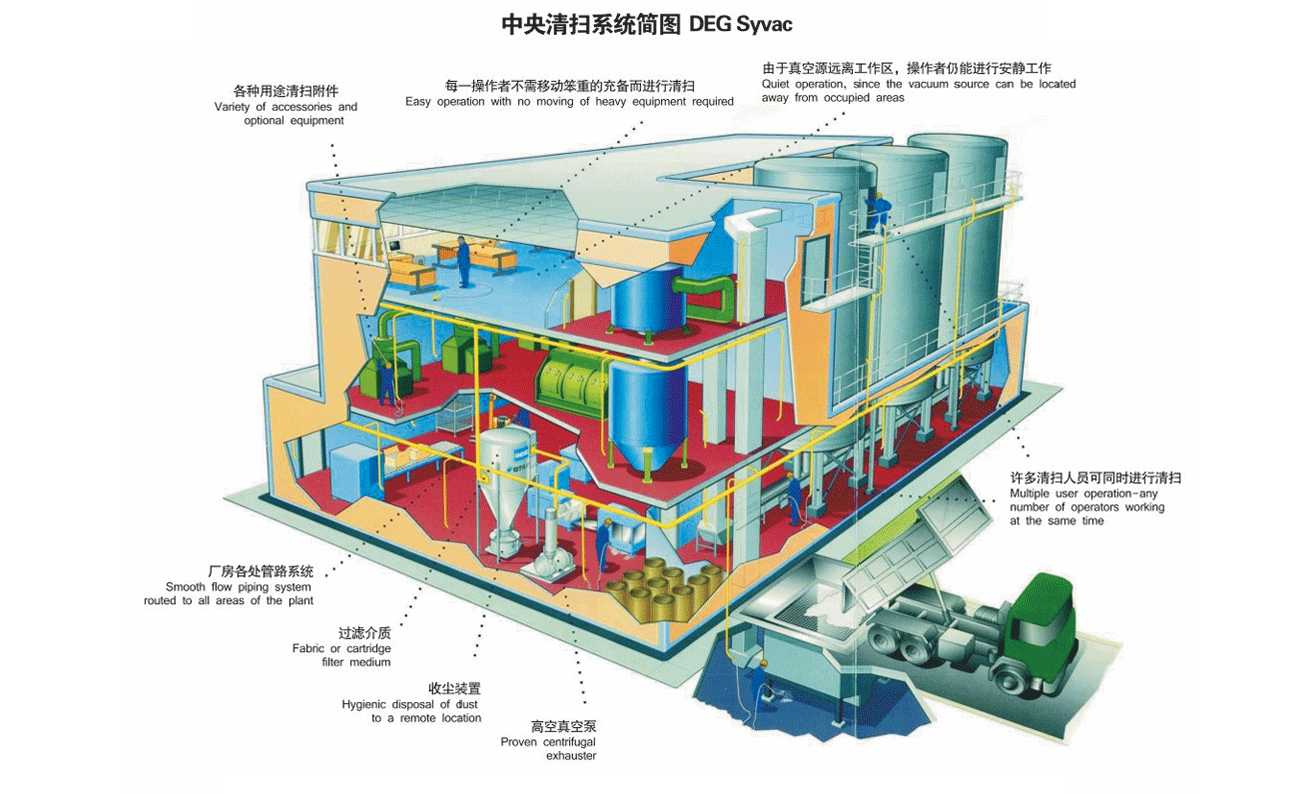

The DEG Syvac central vacuum dleaning system provides a vacuum service throughout an installation. The system consists of a motor-driven centrifugal exhauster connected to a separator,with smooth fow wubing extending the vacuum source to various locations. This allows all collected materials to be conveyed to one central location for convenient and efficient disposal.Due to the high veloity design, the system offers another significant advantage in that it allows multiple user operation, with any number of operators working at the same time.


Contact immediately
DEG Syvac
Product Information

Product Introduction

Specifications

Model Filter Area Number of Elements Dimensions (mm) Dust Collection Container Approximate Net Weight
A B C D E F G H J K
DEG HV F504-5 4㎡ 6 955 2285 1600 284 678 405 880 950 580 1355 55L 505kg
DEG HV F506-5 6㎡ 6 1258 2545 1865 284 829 405 1035 1250 730 1615 55L 615kg
DEG HV F508-5 8㎡ 12 955 2810 1600 546 678 405 880 950 580 1355 55L 645kg
DEG HV F510-5 10㎡ 10 1258 2545 1865 284 829 605 1035 1250 730 1615 55L 730kg
DEG HV F510-10 100L
DEG HV F514-5 14㎡ 20 1258 3070 1865 546 829 605 1035 1250 730 1615 55L 930kg
DEG HV F514-10 100L
DEG HV F520-5 20㎡ 20 1258 3070 1865 546 829 605 1035 1250 730 1615 55L 950kg
DEG HV F520-10 100L
DEG HV F530-5 14㎡ 30 1258 3670 1865 1131 829 605 1035 1250 730 1615 55L 1205kg
DEG HV F530-10
DEG HV F538-5 38㎡ 30 1758 4105 2300 1131 1079 605 1285 1500 980 2050 55L 1555kg
DEG HV F538-10 100L
DEG HV F538-15 155L
DEG HV F545-5 45㎡ 30 1758 4105 2300 1131 1079 605 1285 1750 980 2050 55L 1585kg
DEG HV F545-10 100L
DEG HV F545-15 155L

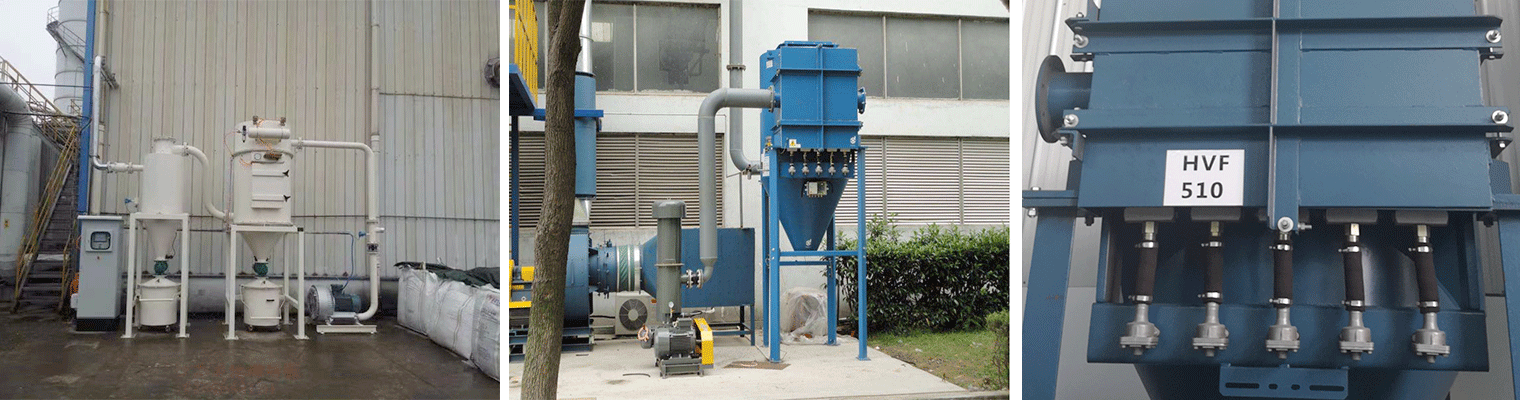

Case
