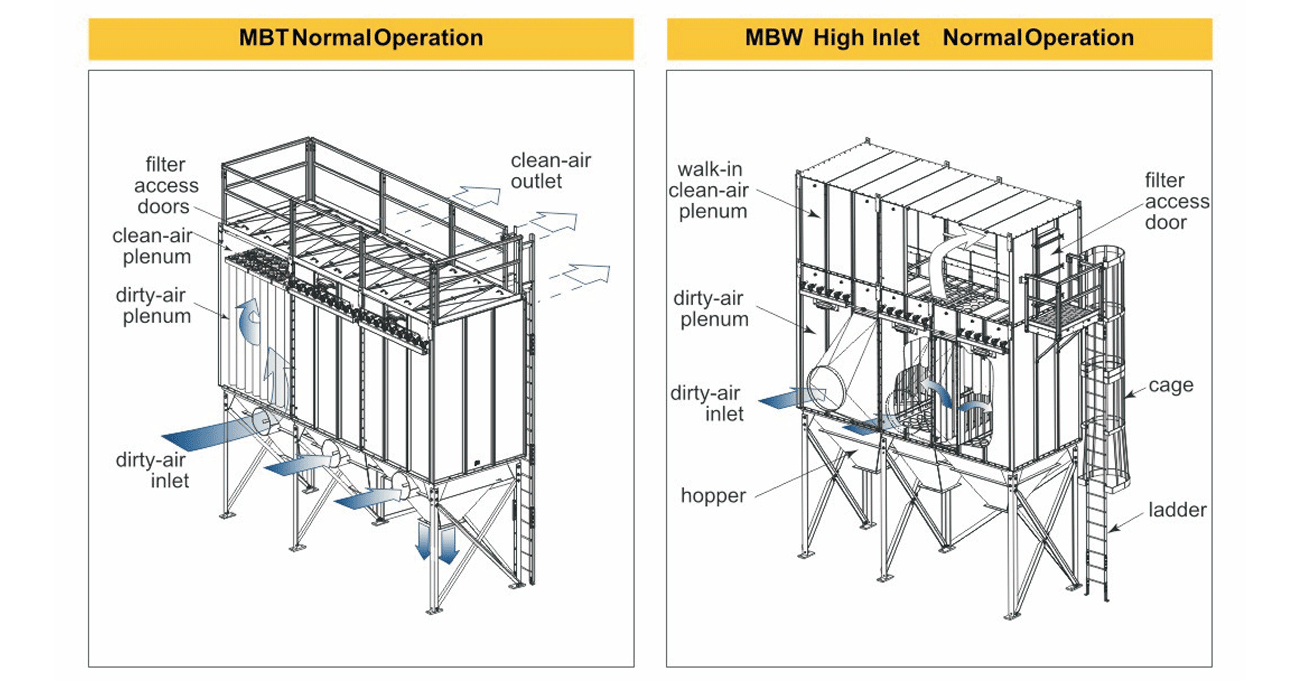

Operation Principle

Model	Rated Airflow Range（cfm）	Filter Cloth Area（ft2）	Number of Filter Bags	Number of Valves	Shipping Weight（lbs）
					MBT	MWB
36 MBT5	1,150–2,880	288	36	6	2500	–
36 MBT6	1,380–3,450	345	36	6	2850	–
36 MBT8	1,840–4,600	460	36	6	3200	–
54 MBT6	2,070–5,180	518	54	6	3800	–
54 MBT8	2,760–6,910	691	54	6	4200	–
54 MBT10	3,460–8,660	866	54	6	5000	–
54 MBT(W)H 8	2,760–8,290	691	54	6	5890	6870
54 MBT(W)H 10	3,460–10,390	866	54	6	6565	7110
81 MBT(W)H 8	4,150–10,390	1039	81	9	3900	7600
81 MBT(W)H 10	5,190–12,990	1299	81	9	5509	7222
81 MBT(W)H 8	4,150–12,460	1039	81	9	7085	8145
81 MBT(W)H 10	5,190–15,580	1299	81	9	7690	9172
108 MBT(W) 8	5,530–13,830	1383	108	12	6800	7800
108 MBT(W) 10	6,920–17,300	1730	108	12	7700	9000
108 MBT(W)T 8	5,530–16,590	1383	108	12	8480*	9555**
108 MBT(W)T 10	6,920–20,760	1730	108	12	9320*	10,580**
144 MBWS8	7,380–18,450	1845	144	12	–	10,088
144 MBWS10	9,220–23,070	2307	144	12	–	10,559
162 MBT(W) 8	8,310–20,780	2078	162	18	6600	9500
162 MBT(W) 10	10,390–25,980	2598	162	18	9131	11,087
162 MBT(W)T 8	8,310–24,930	2078	162	18	12,538	13,672
162 MBT(W)T 10	10,390–31,170	2598	162	18	13,725	15,302
189 MBT(W)H 8	9,690–29,070	2423	189	21	13,532	14,565
189 MBT(W)H 10	12,110–36,340	3029	189	21	14,910	16,598
225 MBWS8	11,530–28,840	2884	225	15	–	14,460
225 MBWS10	14,420–36,060	3606	225	15	–	15,481
243 MBT(W) 8	12,460–31,170	3117	243	27	8400	12,800
243 MBT(W) 10	15,580–38,970	3897	243	27	12,605	14,687
297 MBT(W)H 8	15,230–45,960	3808	297	33	20,173	21,390
297 MBT(W)H 10	19,040–57,120	4760	297	33	21,924	24,172
324 MBT(W) 8	16,620–41,560	4156	324	36	11,600	16,800
324 MBT(W) 10	20,780–51,960	5196	324	36	16,034	19,467
324 MBT(W)T 8	16,620–49,870	4156	324	36	21,570	21,755
324 MBT(W)T 10	20,780–62,352	5196	324	36	23,215	25,495
324 MBWS8	16,620–41,560	4156	324	36	–	20,076
324 MBWS10	20,780–51,960	5196	324	36	–	20,144
405 MBT(W) 8	20,780–51,950	5195	405	45	14,500	20,800
405 MBT(W) 10	25,980–64,950	6495	405	45	19,201	23,985
* Based on clean fiters. * Two pyr amid hoppers. Single outlet hopper also avail able.
