Dust Removal Equipment >> Wet Dust Collector

DEG-SS-N Series

DEG-SS-N wet dust collector is efficienct, simple, flexible, durable and with low maintenance cost and low water consumption. It can meet many needs of dust collecting and solve collecting problems.

Flexibility- When changing the collection efficiency, one only needs to change the water level, with a corresponding adjustment of the exhaust fan specification, so that collection efficiency can be increased or decreased. There are specially designed impeller blades,which can produce a higher pressure drop and a higher flow velocity to improve the collection efficiency.


Sturdy And Durable一N-type DEG-SS-N dust collector can be used in normal and high-intensity work. Typically use a standard high-strength hot-rolled carbon steel against corrosive environment in the coal tar epoxy paint inside or stainless steel construction.

Low water consumption—water level control system designed to make water consumption kept to a minimum.

High Efficiency—maximize the use of energy for many different kinds and sizes of dust particles include ultrafine ones. The uniquedesign of the impeller blades provides comprehensive cleaning, so that the fine dusty gas is completely wet and enlarges large particles.The large dust particles are more sensitive to the centrifugal force, thereby making it easier to penetrate the water curtain and precipitate from the gas. DEG-SS-N is comparable or even better in the wet precipitator collection efficiency and energy consumption, comparing to other wet dust collectors.

Contact immediately
DEG-SS-N Series
Product Information

Product Introduction

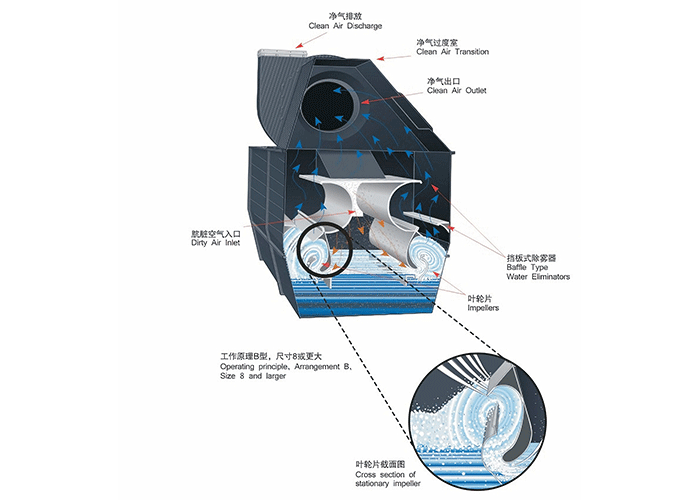

Working Principle

The Type DEG-SS-N cleans the air by the combined action of centrifugal force and a thorough intermixing of water and dust-laden air. The dust is separated from the air by a water curtain,created by the flow of air through a partially submerged stationary impeller. Air flowing through the impeller at a high velocity conveys a turbulent sheet of water withit. Additional water is introduced at the narrowestportion of the impeller opening through a specially designed slot. in the bottom. This water flow upward through the slot creates increased interaction between the dust and water,thus increasing collection efficiency.

The centrifugal force exerted by rapid changes in direction of flow causes the dust particles topenetrate the water film and become permanently trapped.

Entrained water droplets in the cleaned air are removed by specially designed, wide-space chevron eliminators for smaller collectors or three curved de-entrainment baffles for larger collectors.

The water in the reservoir is continually used.Since the water curtain is produced by the airflow, no pumps or nozzles are required. A small amount of fresh water is supplied through the make-up water connection, to compensate for evaporation and water lost as the collected dust is removed from the unit.

The pressure drop of the Type DEG-SS-N can be varied from 5.3"to 11.7"w.g. This allows a higher efficiency for smaller, hard to collect dust particles; heavier particles; and particles smaller than design conditions.

Specifications

Dimensions Type B Type C Type D
Operating Weight with Fan (lbs) Water Capacity of Dust Collector (gal) Shipping Weight with Fan (lbs) Operating Weight with Fan (lbs) Water Capacity of Dust Collector (gal) Shipping Weight with Fan (lbs) Operating Weight with Fan (lbs) Water Capacity of Dust Collector (gal) Shipping Weight with Fan (lbs)
DEG-SS-11/2 2,600 90 1,600 6,300 300 2,300 3,700 120 2,100
DEG-SS-21/2 2,800 90 1,700 6,400 300 2,400 3,800 120 2,200
DEG-SS-4 4,200 140 2,300 9,500 470 3,200 5,200 180 2,800
DEG-SS-6 5,900 220 3,000 11,400 540 4,200 8,100 330 3,700
DEG-SS-8 8,200 295 4,200 13,200 530 6,100 10,700 390 5,500
DEG-SS-12 11,200 440 5,300 16,500 650 7,800 15,000 605 6,900
DEG-SS-16 14,000 510 7,200 28,500 1,370 10,200 20,800 900 8,800
DEG-SS-20 17,000 730 8,100 33,600 1,650 11,600 26,800 1,250 10,100
DEG-SS-24 21,000 880 10,100 40,300 1,950 14,300 31,400 1,290 14,200
DEG-SS-28 24,000 1,025 11,900 46,000 2,220 16,400 36,800 1,510 16,600
DEG-SS-32 — — — 51,100 2,500 17,700 43,500 1,925 17,800
DEG-SS-36 — — — 56,300 2,775 19,300 50,000 2,250 20000
DEG-SS-40 — — — 64,500 3,050 23,000 58,300 2,500 24,900
DEG-SS-44 — — — 70,200 3,330 3,330 25,800 62,900 27,000
DEG-SS-48 — — — 76,100 3,610 27,900 67,400 2,880 29,000
Operating weights are based on the maximum sludge capacity with a sludge weight of 100 lbs. per cubic foot.

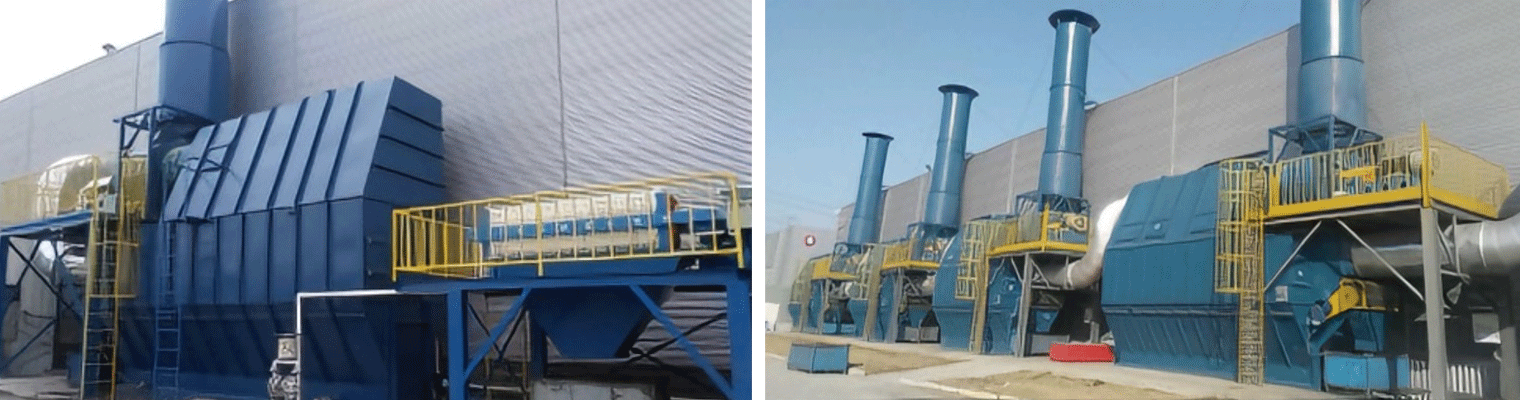

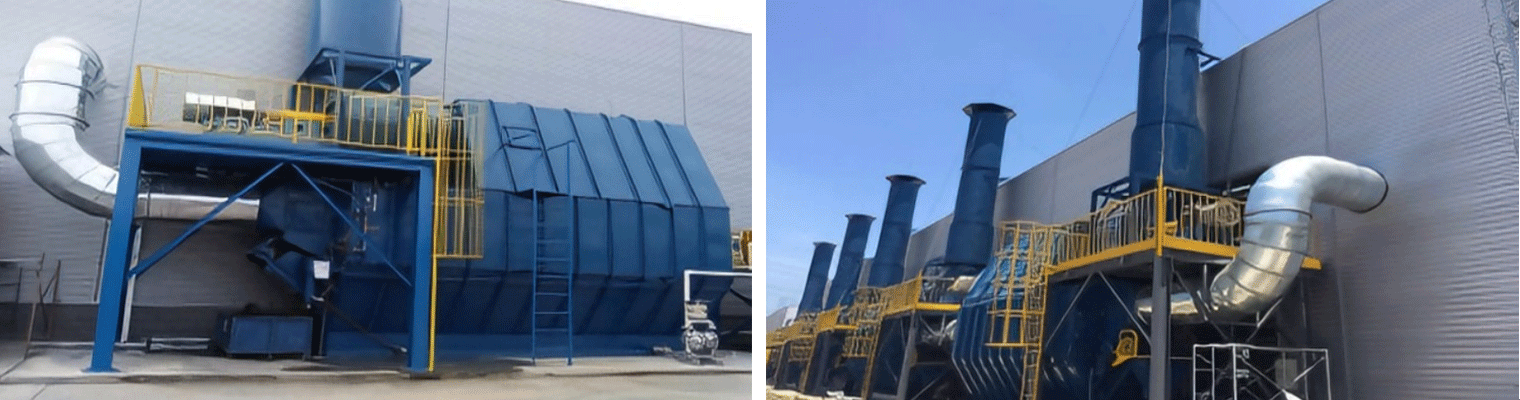

Case
