Structure, Principle and Features of SCR Scrubber
· The SCR series scrubber is made of PP (Polypropylene) or FRP (Fiberglass Reinforced Plastic), featuring excellent corrosion resistance.
· It adopts a counterflow design in structure. Waste gas enters through the bottom inlet of the equipment, flows upward in a countercurrent direction to the packing layer, fully contacts and reacts with the liquid medium, then reaches the demisting layer for gas-liquid separation. Finally, the purified air is led to high altitude for emission by a fan.
· The main body, spray system, circulating water tank, pump and piping are designed as an integrated unit, delivering a compact and rational structure.
· The spray system is equipped with American Spiraljet spiral nozzles. When the circulating water passes through the spiral groove to the nozzle orifice, it forms a hollow conical water mist under the action of rotational force. The resulting water curtain has strong shielding capability and high boundary integrity, and the atomized water droplets can reach a fine particle size.
· The packing layer is made of Tellerette−K1 material. When the water mist settles near the serrated parts of the packing, it quickly forms water droplets that make full contact with waste gas molecules. Tellerette−K1 material boasts the advantages of high porosity, large specific surface area and low airflow resistance.
· The demisting layer is made of Tellerette−H1 material, with a water mist removal rate of ≥ 98%.

· The SCR series scrubber integrates the circulating water tank with the main body structure, and is equipped with supporting sight glasses, maintenance manholes, ladder platforms, etc., which makes the later maintenance and servicing work very convenient and safe.

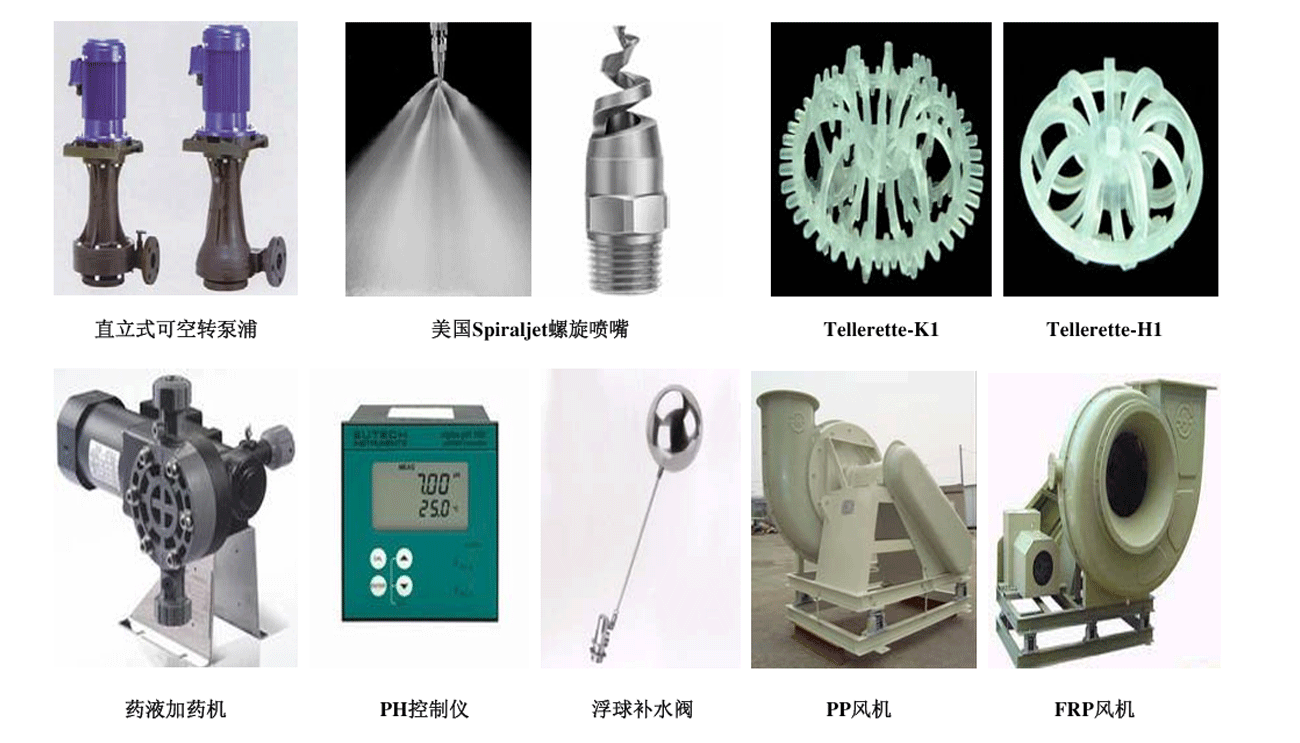

High-quality Accessories

Model	Processing AirflowQ(CMM）	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	Circulating Water Flow Rate（L/min）
SCB-01	10~20	∅300	3590	780	∅150	∅150	100*100	30
SCB-02	20~30	∅450	3690	805	∅200	∅200	150*150	40
SCB-03	30~50	∅600	3915	860	∅300	∅300	200*200	90
SCB-04	50~80	∅750	3965	925	∅350	∅350	300*300	110
SCB-05	80~110	∅900	4015	925	∅450	∅450	300*400	150
SCB-06	120~150	∅1050	4195	940	∅500	∅500	400*400	200
SCB-07	150~180	∅1200	4315	970	∅550	∅550	400*500	270
SCB-08	180~240	∅1350	4430	1040	∅650	∅650	400*500	350
SCB-09	240-290	∅1500	4530	1065	∅700	∅700	400*500	450
SCB-10	290-350	∅1650	4630	1090	∅750	∅750	400*500	550
SCB-11	350~450	∅1800	4840	1140	∅850	∅850	400*500	600
SCB-12	450~600	∅2100	4620	1020	∅900	∅900	400*600	830
SCB-13	600~800	∅2450	4750	1020	∅1050	∅1050	400*600	1150
SCB-14	800~950	∅2750	4820	1150	∅1200	∅1200	500*600	1420
SCB-15	950~1150	∅3050	5060	1150	∅1350	∅1350	500*600	1750
SCB-16	1150~1400	∅3350	5220	1150	∅1500	∅1500	500*600	2100
SCB-17	1400~1700	∅3650	5290	1150	∅1650	∅1650	500*600	2500
