Activated carbon adsorption tower

The activated carbon adsorption method utilizes the surface force of the high-performance activated carbon adsorbent sold itself to attract the adsorbate of the VOC molecule to the surface of the adsorbent to achieve the purpose of removing the VOC substance, Activated carbon adsorption under low-concentration VOC conditions can ideally remove the volatile organic compounds in the waste gas,and has better cconomic benelits. There fore in the control of air pollutants,it is especially suitable for treating low-con-centration large-volume VOC waste gas, like the waste gas produced by the followng industries: Electronic original production、 battery production、 laboratory exhaust, metallurgy chemical pharmaceutical、painting、 light industry、 rubber、 shipbuilding、automotive. petroleum、 painting、brewing and furniture production.

Contact immediately
Activated carbon adsorption tower
Product Information

Product Introduction

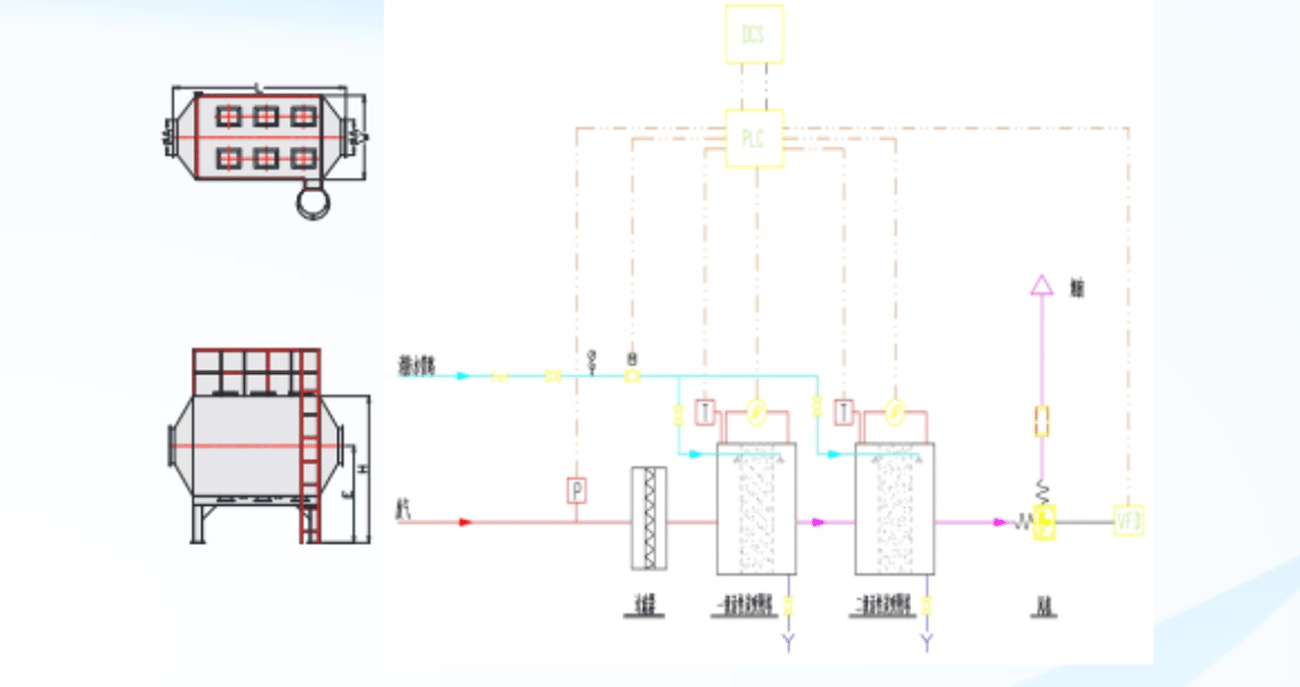

Activated carbon adsorption flow chart:

Specifications

Item No. Model Airflow/CMH A/mm W/mm H/mm E/mm L/mm
1 DEG-FJTV-030 2500 300 1100 2480 1730 1730
2 DEG-FJTV-040 5000 400 1850 2480 1730 2130
3 DEG-FJTV-050 7500 500 1850 2480 1730 2510
4 DEG-FJTV-055 10000 550 1850 2480 1730 2900
5 DEG-FJTV-060 12500 600 1850 2480 1730 3280
6 DEG-FJTV-065 15000 650 1850 2480 1730 3670
7 DEG-FJTV-070 17500 700 2600 2910 1945 3150
8 DEG-FJTV-075 20000 750 2600 2910 1945 3400
9 DEG-FJTV-080 22500 800 2600 2910 1945 3665
10 DEG-FJTV-085 25000 850 2600 2910 1945 3925
11 DEG-FJTV-090 27500 900 2600 2910 1945 4180
12 DEG-FJTV-095 30000 950 2600 2910 1945 4435
13 DEG-FJTV-100 32500 1000 2600 2910 1945 4695
14 DEG-FJTV-105 35000 1050 2600 2910 1945 1950
